Model: EG2028K

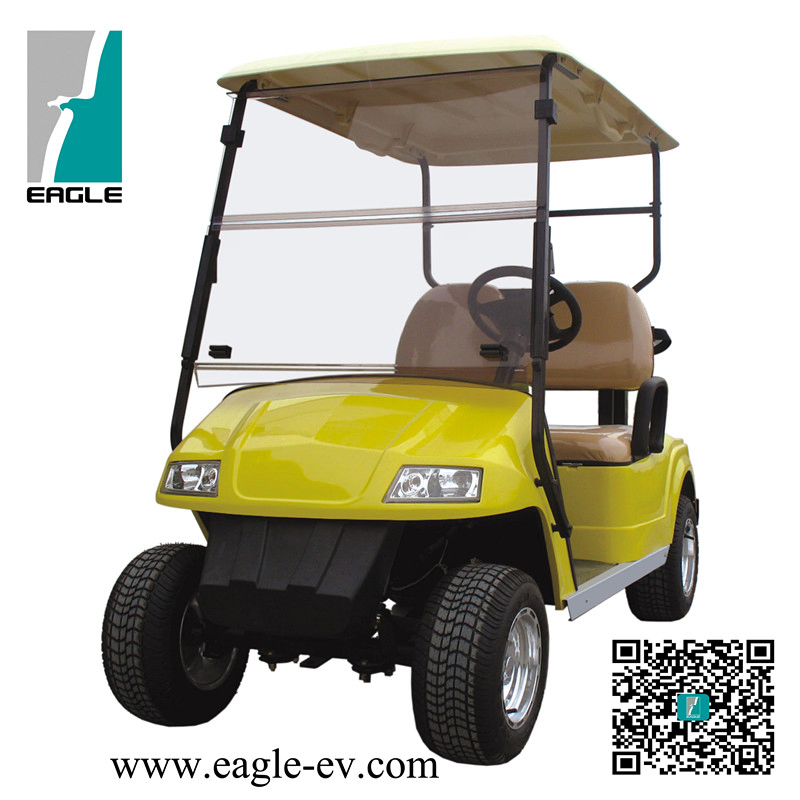

The EG2028K is a popular golf cart model known for its delicate design and robust performance. This model offers versatility with both 36V and 48V configurations. It features powerful motors ranging from 3KW to 5.3KW and high-quality aluminum rims, making it a top choice for both style and functionality.
| Key Components | |
| Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 3KW, 3.8KW, 5KW, DC / AC |
| Controller | Curtis brand, Separately excited, imported |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) (km) | > 60--100 (depends on battery setup) |
| Max. Speed (KM) | 21-40 (depends on motor and rear axle setup) |
| Minimum turning radius (m) | 3.5 |
| Max. Climbing ability | 20% - 25% |
| Max. Loading weight | 150kgs |
| Overall dimensions (mm) | 2350 x 1180 x 1750 |
| Body and Frame | |
| Frame | Welded steel framework with phosphate + electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | Injected plastic |
| Windshield | One-piece Organic glass |
| Large Seats | Rebond seat + artificial leather, formed armrest, plastic seat bottom |
| Floor | Rubber |
| Dashboard | Forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 4 cups drink holders |
| Electric System | |
| Lighting and Horn | 2 headlights, 2 front turn signals, 2 taillights (brake + turn signal), DC-DC converter, horn, Reversing alarm |
| Charger | Input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake |
| Accelerator | Stepless speed change |
| Suspension | Front and rear plate spring + cylinder hydraulic shock absorber |
| Wheel & Tyre | 10x6 Aluminum wheel & 205/50-10 4PR |
